Z-LED

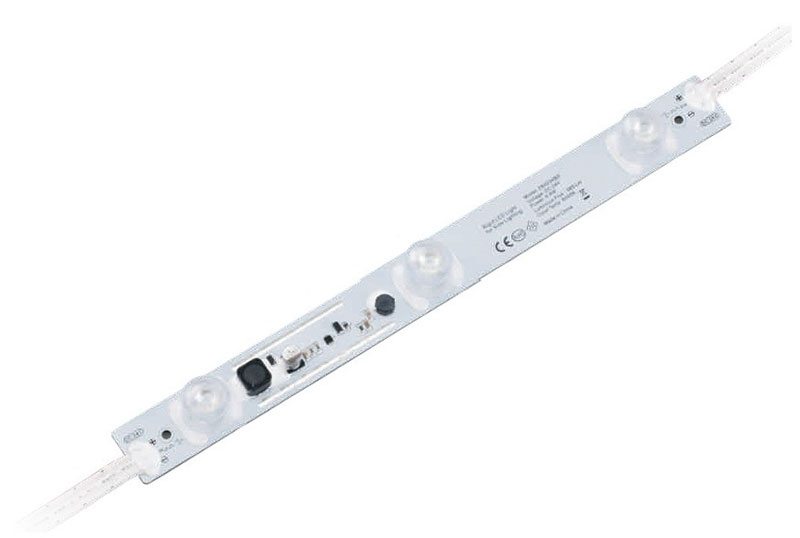

Z-LED 6 Daylight White Z6003XBD-DW24
Z-LED 6 Daylight White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z6003XBD-DW24 Daylight White 4500 ºK 10 x 40º 570lm ≥70 84 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 297.5x27.5x15.2 3 0.057 kg -25 to +60 ºC -25 to + 70 ºC nil

Z-LED 6 Natural White Z6003XBD-NW24
Z-LED 6 Natural White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z6003XBD-NW24 Natural White 6000 ºK 10 x 40º 660lm ≥70 97 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 297.5x27.5x15.2 3 0.057 kg -25 to +60 ºC -25 to + 70 ºC nil

Z-LED 6 Warm White Z6003XBD-WW24
Z-LED 6 Warm White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z6003XBD-WW24 Warm White 3000 ºK 10 x 40º 501lm ≥70 74 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 297.5x27.5x15.2 3 0.057 kg -25 to +60 ºC -25 to + 70 ºC nil

Z-LED 6 Daylight White Z6005XBD-DW24
Z-LED 6 Daylight White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z6005XBD-DW24 Daylight White 4500 ºK 10 x 40º 950lm ≥70 86 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
458 max mA 11 W 517.5x27.5x15.2 5 0.092 kg -25 to +60 ºC -25 to + 70 ºC nil

Z-LED 6 Natural White Z6005XBD-NW24
Z-LED 6 Natural White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z6005XBD-NW24 Natural White 6000 ºK 10 x 40º 1100lm ≥70 100 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
458 max mA 11 W 517.5x27.5x15.2 5 0.092 kg -25 to +60 ºC -25 to + 70 ºC nil

Z-LED 6 Warm White Z6005XBD-WW24
Z-LED 6 Warm White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z6005XBD-WW24 Warm White 3000 ºK 10 x 40º 835lm ≥70 76 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
458 max mA 11 W 517.5x27.5x15.2 5 0.092 kg -25 to +60 ºC -25 to + 70 ºC nil

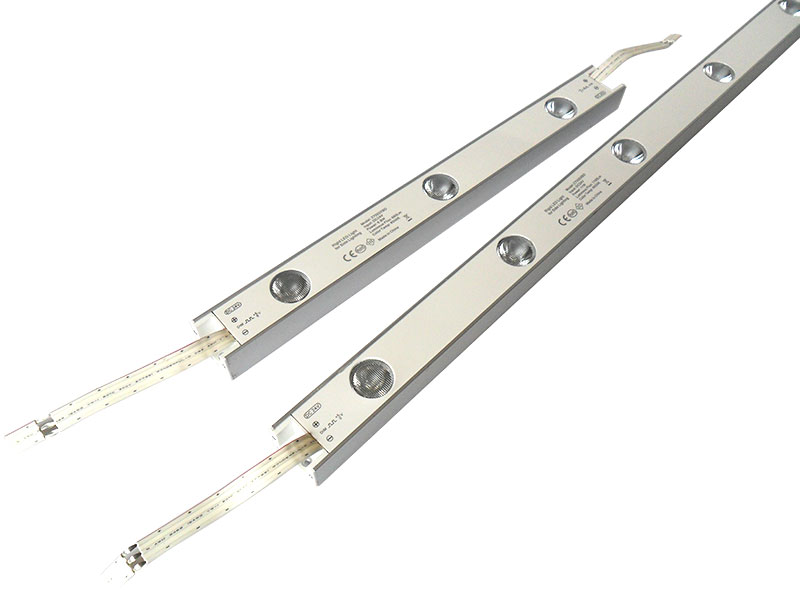

Z-LED 7 Daylight White Z7003XBD-DW24
Z-LED 7 Daylight White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z7003XBD-DW24 Daylight White 4500 ºK 10 x 40º 570lm ≥70 84 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 323x30x22 3 0.28 kg -25 to +60 ºC -25 to + 70 ºC IP65

Z-LED 7 Natural White Z7003XBD-NW24
Z-LED 7 Natural White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z7003XBD-NW24 Natural White 6000 ºK 10 x 40º 660lm ≥70 97 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 323x30x22 3 0.28 kg -25 to +60 ºC -25 to + 70 ºC IP65

Z-LED 7 Warm White Z7003XBD-WW24
Z-LED 7 Warm White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z7003XBD-WW24 Warm White 3000 ºK 10 x 40º 501lm ≥70 74 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 323x30x22 3 0.28 kg -25 to +60 ºC -25 to + 70 ºC IP65

Z-LED 7 Natural White Z7005XBD-NW24
Z-LED 7 Natural White Part No. Colour Colour Temperature (Typ.) View Angle Luminous Flux (Typ.) CRI Efficacy Input Voltage
Z7005XBD-NW24 Natural White 6000 ºK 10 x 40º 1100lm ≥70 100 lm/W 24
Operating Current Power Consumption Dimensions Number of LEDs Weight Operating Temp. Storage Temp. [ºC] IP Rating
283 max mA 6.8 W 543x30x22 5 0.46 kg -25 to +60 ºC -25 to + 70 ºC IP65
