MW 1-10V dimming series 150H

HLG-150H-12-B

Quick Overview

MW range of 1-10V dimmable constant voltage power supply units for 12V LED modules

Download PDF brochure for this range

High-performance and fully featured weatherproof LED drivers designed for illuminated signage and other lighting applications.

Design is approved to EN61347-2-13: particular safety requirements for electronic control gear for LED modules.

APPLICATIONS

For connection to the normal 230V a.c. ‘Mains’ supply, these drivers are suitable for 12V current limited LED modules including F-LED, H-LED, M-LED, FlexiLED, PinPoint and SE-LED. Dimming control is via a pair of wires (Blue+, White-) on the secondary side of the driver. Use a 1-10V dimmer switch to adjust brightness. Important: for reliable dimming function observe recommended max. and min. Wattage

Specifications
Rated power (W) / current (A) output150 / 12.5
Recommended max and min-power (W) / current (A) outputMax. 127 / 10.58 Min. 75 / 6.25
Input current typ. (A) @ 230V0.75
Eff%≥91
MTBF/K hours192

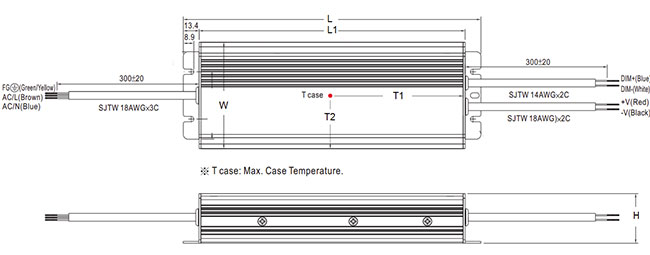

Dimensions (mm) / Weight (kg)L 228, L1 204 x W 68 x H39 / 1.15
Dimming?Y
  • EN61347-2-13: particular safety requirements for electronic control gear for LED modules
  • Over-Current Protection
  • Short-Circuit Protection
  • Over-Voltage Protection
  • Over-Temperature Protection
  • SELV output
  • Dust and weather resistant (IP67)
  • 5 years limited warranty
