Oshino Lamps Catalogue Index    |  ALI |  PWI

Sealed Beams

Ask us about Sealed Beams Call: 262-226-8620

Share:
Page 1 of 2 pages. Item total: 33

Sealed Beam Lamp 4509 - Screw Terminals 4509
Sealed Beam Lamp 4509 - Screw Terminals Part No. Bulb size Watts W Voltage V
4509 PAR36 - 114mm dia. 100W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
110,000 AIPBCP 25 Filament C-6 58mm MOL
Sealed Beam Lamp 4519 - Screw Terminals 4519
Sealed Beam Lamp 4519 - Screw Terminals Part No. Bulb size Watts W Voltage V
4519 PAR36 - 114mm dia. 100W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
30,000 AIPBCP 25 Filament C-6 58mm MOL
Sealed Beam Lamp 4522 - Screw Terminals 4522
Sealed Beam Lamp 4522 - Screw Terminals Part No. Bulb size Watts W Voltage V
4522 PAR46 - 146mm dia. 250W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
290,000 AIPBCP 25 Filament C-2 79.5mm MOL
Sealed Beam Lamp 4537 - Screw Terminals 4537
Sealed Beam Lamp 4537 - Screw Terminals Part No. Bulb size Watts W Voltage V
4537 PAR46 - 146mm dia. 100W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
200,000 AIPBCP 25 Filament C-6 79.5mm MOL
Sealed Beam Lamp 4551 - Screw Terminals 4551
Sealed Beam Lamp 4551 - Screw Terminals Part No. Bulb size Watts W Voltage V
4551 PAR46 - 146mm dia. 250W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
75,000 AIPBCP 25 Filament CC-6 95.3mm MOL
Sealed Beam Lamp 4553 - Screw Terminals 4553
Sealed Beam Lamp 4553 - Screw Terminals Part No. Bulb size Watts W Voltage V
4553 PAR46 - 146mm dia. 250W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
300,000 AIPBCP 25 Filament CC-8 79.5mm MOL
Sealed Beam Lamp 4554 - Screw Terminals 4554
Sealed Beam Lamp 4554 - Screw Terminals Part No. Bulb size Watts W Voltage V
4554 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
90,000 AIPBCP 25 Filament CC-8 79.5mm MOL

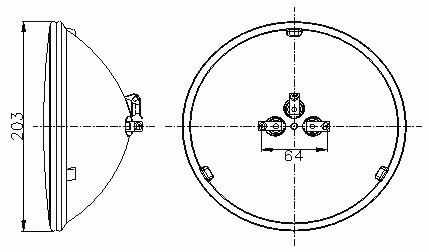

Sealed Beam Lamp 4557 - 3 Screw Terminals 4557
Sealed Beam Lamp 4557 - 3 Screw Terminals Part No. Bulb size Watts W Voltage V
4557 PAR64 - 203mm dia. 400W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
540,000 AIPBCP 25 Filament CC-8 95mm MOL
Sealed Beam Lamp 4559 - Screw Terminals 4559
Sealed Beam Lamp 4559 - Screw Terminals Part No. Bulb size Watts W Voltage V
4559 PAR64 - 203mm dia. 600W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
600,000 AIPBCP 25 Filament CC-6 95mm MOL
Sealed Beam Lamp 4580 - Screw Terminals 4580
Sealed Beam Lamp 4580 - Screw Terminals Part No. Bulb size Watts W Voltage V
4580 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
400,000 AIPBCP 10 Filament CC-8 95.3mm MOL
Sealed Beam Lamp 4587 - Screw Terminals 4587
Sealed Beam Lamp 4587 - Screw Terminals Part No. Bulb size Watts W Voltage V
4587 PAR36 - 114mm dia. 250W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
40,000 AIPBCP 25 Filament CC-8 58mm MOL
Sealed Beam Lamp 4589 - Screw Terminals 4589
Sealed Beam Lamp 4589 - Screw Terminals Part No. Bulb size Watts W Voltage V
4589 PAR36 - 114mm dia. 50W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
5,000 AIPBCP 400 Filament CC-6 58mm MOL
Sealed Beam Lamp 4591 - Screw Terminals 4591
Sealed Beam Lamp 4591 - Screw Terminals Part No. Bulb size Watts W Voltage V
4591 PAR36 - 114mm dia. 100W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
90,000 AIPBCP 25 Filament CC-6 58mm MOL
Sealed Beam Lamp 4593 - Screw Terminals 4593
Sealed Beam Lamp 4593 - Screw Terminals Part No. Bulb size Watts W Voltage V
4593 PAR36 - 114mm dia. 50W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
1,500 AIPBCP 400 Filament CC-6 58mm MOL
Sealed Beam Lamp 4594 - Screw Terminals 4594
Sealed Beam Lamp 4594 - Screw Terminals Part No. Bulb size Watts W Voltage V
4594 PAR36 - 114mm dia. 100W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
70,000 AIPBCP 300 Filament CC-6 58mm MOL
Sealed Beam Lamp 4595 - Screw Terminals 4595
Sealed Beam Lamp 4595 - Screw Terminals Part No. Bulb size Watts W Voltage V
4595 PAR36 - 114mm dia. 100W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
60,000 AIPBCP 300 Filament C-6 58mm MOL
Sealed Beam Lamp 4596 - Screw Terminals 4596
Sealed Beam Lamp 4596 - Screw Terminals Part No. Bulb size Watts W Voltage V
4596 PAR36 - 114mm dia. 250W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
150,000 AIPBCP 25 Filament CC-8 58mm MOL
Sealed Beam Lamp 4626 - Screw Terminals 4626
Sealed Beam Lamp 4626 - Screw Terminals Part No. Bulb size Watts W Voltage V
4626 PAR36 - 114mm dia. 150W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
25,000 AIPBCP 300 Filament C-6 58mm MOL
Sealed Beam Lamp 4627 - Screw Terminals 4627
Sealed Beam Lamp 4627 - Screw Terminals Part No. Bulb size Watts W Voltage V
4627 PAR36 - 114mm dia. 100W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
3,000 AIPBCP 300 Filament CC-6 58mm MOL
Sealed Beam Lamp 4635 - Screw Terminals 4635
Sealed Beam Lamp 4635 - Screw Terminals Part No. Bulb size Watts W Voltage V
4635 PAR46 - 146mm dia. 450W 16.5V
Luminous Intensity Life hours Filament Type Dimensions mm
325,000 AIPBCP 25 Filament C-8 95.3mm MOL
Sealed Beam Lamp 4700 - Screw Terminals 4700
Sealed Beam Lamp 4700 - Screw Terminals Part No. Bulb size Watts W Voltage V
4700 PAR36 - 114mm dia. 100W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
100,000 AIPBCP 25 Filament C-6 58mm MOL
Sealed Beam Lamp 5557 - 3 Screw Terminals 5557
Sealed Beam Lamp 5557 - 3 Screw Terminals Part No. Bulb size Watts W Voltage V
5557 PAR64 - 203mm dia. 1000W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
540,000 AIPBCP 50 Filament CC-8 95mm MOL
Sealed Beam Lamp Q4554 - Screw Terminals Q4554
Sealed Beam Lamp Q4554 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4554 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
65,000 AIPBCP 100 Halogen CC-6 67mm MOL
Sealed Beam Lamp Q4559 - Screw Terminals Q4559
Sealed Beam Lamp Q4559 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4559 PAR64 - 203mm dia. 600W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
600,000 AIPBCP 100 Halogen CC-6 95mm MOL
Sealed Beam Lamp Q4559X - Screw Terminals Q4559X
Sealed Beam Lamp Q4559X - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4559X PAR64 - 203mm dia. 600W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
765,000 AIPBCP 100 Halogen CC-6 95mm MOL
Sealed Beam Lamp Q4566 - Screw Terminals Q4566
Sealed Beam Lamp Q4566 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4566 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
150,000 AIPBCP 1000 Halogen CC-6 84.3mm MOL
Sealed Beam Lamp Q4597 - Screw Terminals Q4597
Sealed Beam Lamp Q4597 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4597 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
16,000 AIPBCP 1000 Halogen CC-6 84.3mm MOL
Sealed Beam Lamp Q4626 - Screw Terminals Q4626
Sealed Beam Lamp Q4626 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4626 PAR36 - 114mm dia. 150W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
30,000 AIPBCP 350 Filament C-6 58mm MOL
Sealed Beam Lamp Q4631 - Screw Terminals Q4631
Sealed Beam Lamp Q4631 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4631 PAR36 - 114mm dia. 250W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
80,000 AIPBCP 500 Halogen CC-8 58mm MOL
Sealed Beam Lamp Q4632 - Screw Terminals Q4632
Sealed Beam Lamp Q4632 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4632 PAR36 - 114mm dia. 250W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
75,000 AIPBCP 500 Halogen CC-8 58mm MOL
Page 1 of 2 pages. Item total: 33
