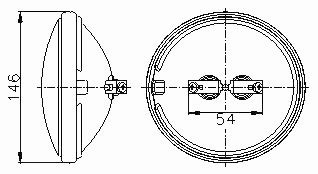

PAR46

Ask us about PAR46 Call: 262-226-8620

Share:

Sealed Beam Lamp 4522 - Screw Terminals 4522
Sealed Beam Lamp 4522 - Screw Terminals Part No. Bulb size Watts W Voltage V
4522 PAR46 - 146mm dia. 250W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
290,000 AIPBCP 25 Filament C-2 79.5mm MOL
Sealed Beam Lamp 4537 - Screw Terminals 4537
Sealed Beam Lamp 4537 - Screw Terminals Part No. Bulb size Watts W Voltage V
4537 PAR46 - 146mm dia. 100W 13V
Luminous Intensity Life hours Filament Type Dimensions mm
200,000 AIPBCP 25 Filament C-6 79.5mm MOL
Sealed Beam Lamp 4551 - Screw Terminals 4551
Sealed Beam Lamp 4551 - Screw Terminals Part No. Bulb size Watts W Voltage V
4551 PAR46 - 146mm dia. 250W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
75,000 AIPBCP 25 Filament CC-6 95.3mm MOL
Sealed Beam Lamp 4553 - Screw Terminals 4553
Sealed Beam Lamp 4553 - Screw Terminals Part No. Bulb size Watts W Voltage V
4553 PAR46 - 146mm dia. 250W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
300,000 AIPBCP 25 Filament CC-8 79.5mm MOL
Sealed Beam Lamp 4554 - Screw Terminals 4554
Sealed Beam Lamp 4554 - Screw Terminals Part No. Bulb size Watts W Voltage V
4554 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
90,000 AIPBCP 25 Filament CC-8 79.5mm MOL
Sealed Beam Lamp 4580 - Screw Terminals 4580
Sealed Beam Lamp 4580 - Screw Terminals Part No. Bulb size Watts W Voltage V
4580 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
400,000 AIPBCP 10 Filament CC-8 95.3mm MOL
Sealed Beam Lamp 4635 - Screw Terminals 4635
Sealed Beam Lamp 4635 - Screw Terminals Part No. Bulb size Watts W Voltage V
4635 PAR46 - 146mm dia. 450W 16.5V
Luminous Intensity Life hours Filament Type Dimensions mm
325,000 AIPBCP 25 Filament C-8 95.3mm MOL
Sealed Beam Lamp Q4554 - Screw Terminals Q4554
Sealed Beam Lamp Q4554 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4554 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
65,000 AIPBCP 100 Halogen CC-6 67mm MOL
Sealed Beam Lamp Q4566 - Screw Terminals Q4566
Sealed Beam Lamp Q4566 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4566 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
150,000 AIPBCP 1000 Halogen CC-6 84.3mm MOL
Sealed Beam Lamp Q4597 - Screw Terminals Q4597
Sealed Beam Lamp Q4597 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4597 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
16,000 AIPBCP 1000 Halogen CC-6 84.3mm MOL
Sealed Beam Lamp Q4681 - Screw Terminals Q4681
Sealed Beam Lamp Q4681 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q4681 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
310,000 AIPBCP 50 Halogen CC-6 67mm MOL
Sealed Beam Lamp Q5554 - Screw Terminals Q5554
Sealed Beam Lamp Q5554 - Screw Terminals Part No. Bulb size Watts W Voltage V
Q5554 PAR46 - 146mm dia. 450W 28V
Luminous Intensity Life hours Filament Type Dimensions mm
70,000 AIPBCP 1000 Halogen CC-6 67mm MOL
