LMD2
LED mini-dim-flash is a simple, reliable and economi-cal to use, inline PWM dimmer & flasher module which is weather resistant and supplied with flying-leads for a simple ’inline’ connection.
Download Short FormPDF brochure for this range
To obtain the optimum lit effect it is sometimes necessary to adjust the brightness of lighting using a dimmer switch. Dimmer switches used for conventional lighting including tungsten halogen, fluorescent, com-pact fluorescent and 230V lamps are unsuitable for use with LED lighting.

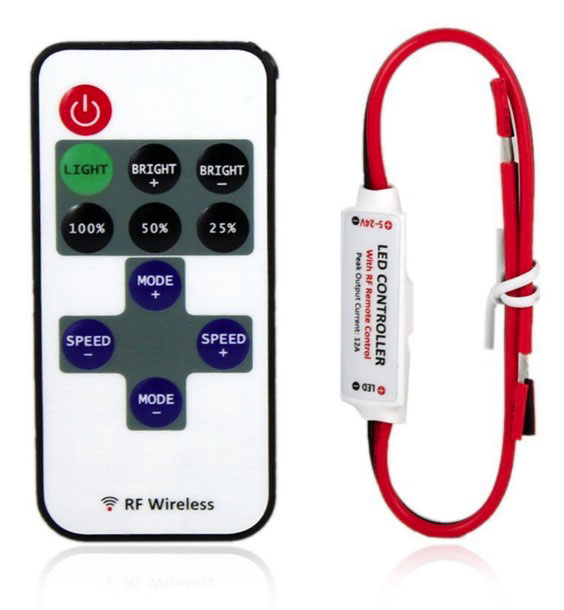

Two versions are available 1) with remote handset and 2) with dimmer/flasher module only. Both comprise user controls of both brightness and flashing modes.
Using the remote handset, via the Mode + and Mode - buttons the user can adjust brightness or flashing functions. Access pre-set brightness levels 100, 50 and 25% or in smaller steps via Bright + & Bright - buttons. In flashing mode, the user can select the rate or flash via Speed - and Speed + buttons. In the event of temporary power-off / power failure, LED mini-dim-flash recalls the last selected setting and resumes the brightness / flash rate program.

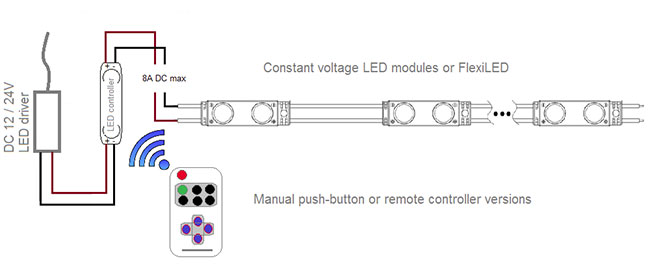

Low power, manual dimming control of 12 or 24V d.c. constant-voltage, single colour LED arrays
| Compatible with | For 12/24V LED constant voltage modules / strip up to 8A DC max |
