R60C0BA-Red
FlexiLED - BA is a flexible, ribbon like, LED lighting system specifically designed for built-up letters, poster boxes, sign boxes and other sign applications.
Download PDF brochure for this range
Download PDF data short form
With a broad beam angle (115°), high brightness and low power consumption (392 lumens 8 watts per metre in White), FlexiLED - BA is ideal for use within signs with constricted spaces or elaborately contoured shapes and where a bright but uniformly lit appearance is required.

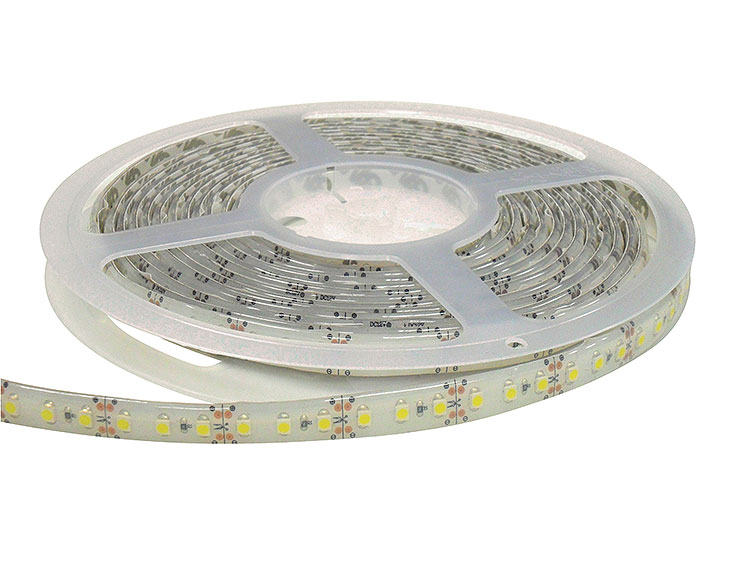

Available in three White colour temperatures plus Red, Green, Blue and Yellow. FlexiLED - BA can be cut into shorter segments at points marked at 25mm intervals (see inset). Each segment includes 3pcs LEDs. The maximum single series length that can be powered is one reel of 5 metres. Additional lengths can be connected in parallel. A flexible and clear silica gel encapsulates the ribbon and protects it from dust and moisture ingress (IP66) but is not suitable for immersion and submersion. Where cut lengths are used care should be taken to re-seal the ribbon’s cut edges using a suitable epoxy resin sealant. The ribbon has a peel off and self-adhesive 3M backing for fast and easy fixing to most de-greased surfaces. One pack of FlexiLED – BA consists of 600pcs LEDs in a 5 metre long ribbon supplied on a plastic reel dispenser in an anti-static foil bag.
Edge lighting; internally illuminated sign letters, poster boxes, sign boxes
CE, RoHS compliant
| Colour | Red |
| Input Voltage | 12 |
| Operating Current | N/A |
| Operating Temp. | -25 to +60 ºC |
| Power Consumption | 1m-9.6W | 5m-40W |
| Dimensions | 5m |
| View Angle | 115º |
| Luminous Flux (Typ.) | 185lm/m |
| Colour Temperature (Typ.) | 620-625 |
| CRI | - |
| Efficacy | 19 lm/W |
| Number of LEDs | - |
| Weight | N/A |
| IP Rating | IP66 |
| Storage Temp. [ºC] | -25 to + 70 ºC |
