S LED (D)

S024BC-AB3-6500

Ask us about S LED (D) Call: 262-226-8620

Share:

Quick Overview

S-LED is an LED back lighting panel system designed for internally lit poster box and fabric-face sign boxes.

Download PDF brochure
Download PDF data short form

Comprising a series of six different panels in three sizes, S-LED can be arrayed and linked together to provide a bright and uniform matrix of energy efficient lighting inside many different box dimensions.

No special link wires or fragile plug connector are necessary - electrical interconnection between panels is done with a screw down metal strip.

Available in three colour-temperatures ranges: 4300, 5100 and 6500

APPLICATIONS

Sign applications including sign boxes between 50 and 100mm deep

CERTIFICATIONS

CE, RoHS compliant

Specifications
Colour-
Input Voltage24VDC
Operating Current75mA
Operating Temp.-20º~+70º
Power Consumption1.80W

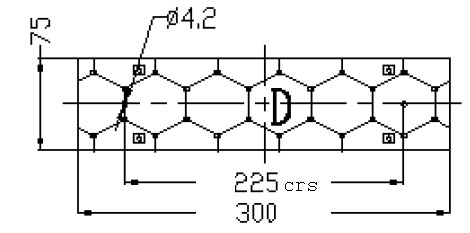

Dimensions300x75mm
View Angle115º
Luminous Flux (Typ.)139
Colour Temperature (Typ.)6500 +/- 500K
CRI≥75
Efficacy77 lm/W
Number of LEDs24
Weight20g
IP RatingIP20
Storage Temp. [ºC]-
  • Beam angle 115º
  • 0.0225 Panel Area / 1 sq M
  • 3528 SMD LEDs (1066pcs / sq M)
  • Bright (5560lm / sq M) and efficient (≥72 lumens / Watt)
  • Low power consumption (80W/ sq M)
  • CRI ≥75
  • Fast installation and low maintenance
  • Normal indoor use (IP20)
  • Safe, low power operation (24VDC)
  • 3 years warranty or 13,000 hours operation whichever occurs first
