SE LED 01

SE001F LED

Quick Overview

SE-LED is a unique chain LED lighting system suitable for slim sign boxes with return depths from just 40mm.

Download PDF data short form
Download PDF data full form

With its extra wide beam angle (170º) high efficacy (103lms per Watt) our new SE-LED system is specially designed for the lighting of sign boxes with slim profiles.

The system comprises modules arranged at 80mm intervals along a chain. Chains can be cut to length and shorter lengths (e.g. off-cuts) can be easily linked together. Chains of modules are plugged into a seven (single) or fourteen (double) ‘busbar’ distribution strip. A maximum of 294 modules can be plugged into and powered from one strip. Plug-in connectors spaced at 80mm intervals along the strip set the spacing between chains of modules at a regular 80mm. The X & Y pitch is fixed 80 x 80mm. This, along with the extra wide beam angle produces a bright and uniform look on the sign’s skin from a simple to layout and wire-up system.

Each module has a peel-off, self-adhesive backing for fast and secure installation. One reel of SE-LED consists of 210 modules in a 16.8 metre long chain.

APPLICATIONS

Sign applications including internally illuminated sign boxes from 40 to 100mm

Specifications
ColourWhite
Input Voltage12V DC
Operating Current0.03A (Max.)
Operating Temp.- 20º~+60º
Power Consumption0.32W (Max.)

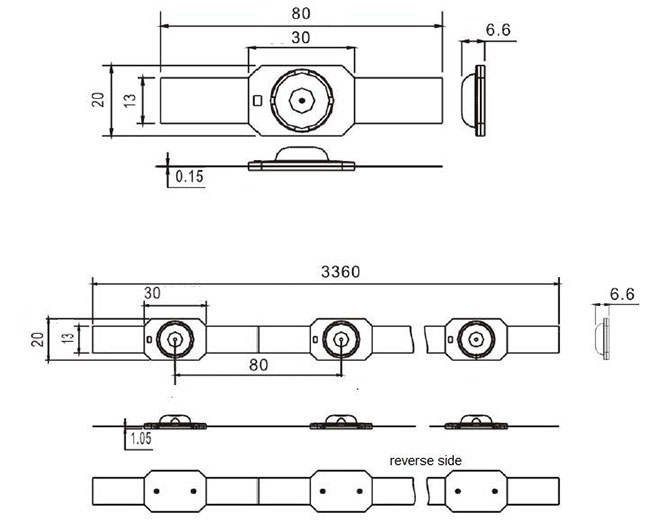

Dimensions80mm(L) x 30mm(W) x 6.6mm(H)
View Angle170°
Luminous Flux (Typ.)33lm
Colour Temperature (Typ.)7000K (range 6000K~8000K)
  • Extra wide beam angle 170°
  • One 2835 SMD LED
  • High brightness and efficiency (103 lumens per Watt)
  • Low power consumption (0.32W)
  • Easily cut to length
  • Normal indoor use (IP20)
  • Max number of Modules in Series: 42
  • Max number of 'busbar' strips in series: 2
  • 5 years warranty and greater than 50,000 hours to 70% light output (L/70)
