SE LED Butt Connector


Quick Overview

Download PDF data short form
Download PDF data full form

With its extra wide beam angle (170º) high efficacy (103lms per Watt) our new SE-LED system is specially designed for the lighting of sign boxes with slim profiles.

The system comprises modules arranged at 80mm intervals along a chain. Chains can be cut to length and shorter lengths (e.g. off-cuts) can be easily linked together. Chains of modules are plugged into a seven (single) or fourteen (double) ‘busbar’ distribution strip. A maximum of 294 modules can be plugged into and powered from one strip. Plug-in connectors spaced at 80mm intervals along the strip set the spacing between chains of modules at a regular 80mm. The X & Y pitch is fixed 80 x 80mm. This, along with the extra wide beam angle produces a bright and uniform look on the sign’s skin from a simple to layout and wire-up system.

Each module has a peel-off, self-adhesive backing for fast and secure installation. One reel of SE-LED consists of 210 modules in a 16.8 metre long chain.


Sign applications including internally illuminated sign boxes from 40 to 100mm

Input Voltage12V DC
Operating Current-
Operating Temp.- 20º~+60º
Power Consumption-
Dimensions12mm(L) x 15mm(W) x 4mm(H)
View Angle-
Luminous Flux (Typ.)
Colour Temperature (Typ.)

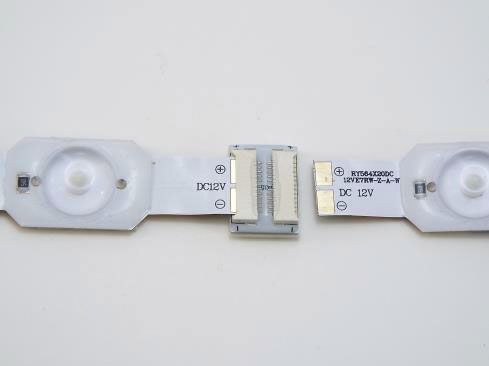

Save unnecessary wastage by linking off-cuts of modules together using this butt connector.
