PSU96/700mA/IP67/EUP Manu p/no: EUP-096S070SV
EUP range of three constant-current power supply units for Super Orbis LED modules.
High-performance, robust and fully featured, outdoor use LED drivers designed for street lighting, illuminated signage and other lighting applications.
Unique Adjustable Output Current - AOC
This feature makes these very adaptable LED drivers the ideal choice for getting the most from our Super Orbis LED Gen LED modules where LED module brightness, the number of modules that can be powered by one driver and the service life time of the LEDs can all be adjusted to suit project requirements. Contact our sales dept. for advice.
For use Super Orbis LED modules
Meets the requirements for safety: EN61347-1 and 2-13 (with sign to IEC60-598): particular safety requirements for electronic control gear for LED modules.
| mA | 700 |
| W | 96 |

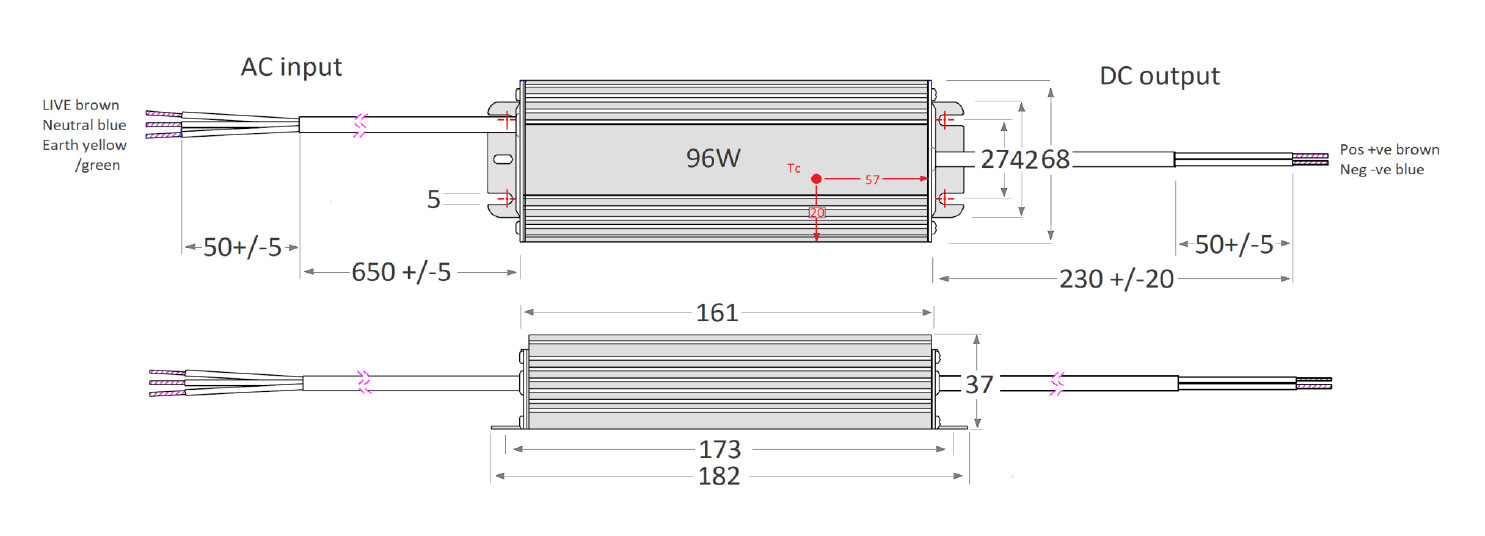

| L x W x H | L182 xW60 x H37 / 0.75 |
| IP | 67 |
| Eff% | - |
| SELV output | - |
| Class | - |
| Warranty | 5 years* |
