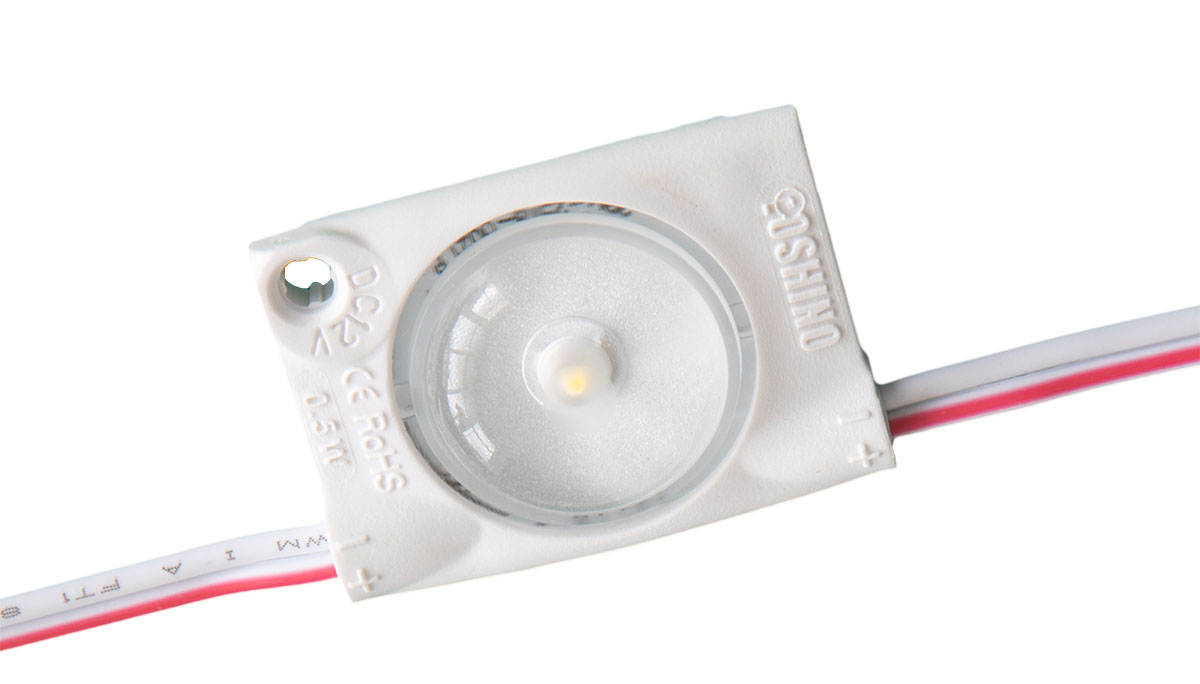

Mini Orbis LED

Ask us about Mini Orbis LED Call: 262-226-8620

Share:

Mini Orbis LED 60 Natural White OLUTN060B
Mini Orbis LED 60 Natural White Part No. Colour Input Voltage Operating Current Operating Temp.
OLUTN060B Natural White 12V DC (range 11.4 to 12.6V) 40mA (+/-10%) -25 to 55ºC
Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
0.48W (+/- 10%) 29.5(L) x 21.5(W) x 7mm(H) Superwide Max 60 / Efficiency (Max) 125 4000K typ & 4500K max
Mini Orbis LED 100 Natural White OLUTN100B
Mini Orbis LED 100 Natural White Part No. Colour Input Voltage Operating Current Operating Temp.
OLUTN100B Natural White 12V DC (range 11.4 to 12.6V) 80mA (+/-10%) -25 to 55ºC
Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
0.96W (+/- 10%) 29.5(L) x 21.5(W) x 7mm(H) Superwide Max 100 / Efficiency (Max) 114 4000K typ & 4500K max
Mini Orbis LED 60 Pure White OLUTW060B
Mini Orbis LED 60 Pure White Part No. Colour Input Voltage Operating Current Operating Temp.
OLUTW060B Natural White 12V DC (range 11.4 to 12.6V) 40mA (+/-10%) -25 to 55ºC
Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
0.48W (+/- 10%) 29.5(L) x 21.5(W) x 7mm(H) Superwide Max 60 / Efficiency (Max) 125 6000K typ to 6700K max
Mini Orbis LED 100 Pure White OLUTW100B
Mini Orbis LED 100 Pure White Part No. Colour Input Voltage Operating Current Operating Temp.
OLUTW100B Pure White 12V DC (range 11.4 to 12.6V) 80mA (+/-10%) -25 to 55ºC
Power Consumption Dimensions View Angle Luminous Flux (Typ.) Colour Temperature (Typ.)
0.96W (+/- 10%) 29.5(L) x 21.5(W) x 7mm(H) Superwide Max 100 / Efficiency (Max) 114 6500K typ to 7000K max
