RGB-LED 702

RGB-LED 702

Quick Overview

RGB series of chain LED modules. An RGB (red, green, blue) chain LED colour-change lighting system for built-up letters, flat-cut letters, sign boxes and other sign lighting applications.

Download PDF data short form

Ideal for matching colours in static lit corporate logos and for full colour-change RGB animated designs. Use with our WiFi-103 LED controller or other approved common anode 12V system.

Comprising three high brightness and quality 3-in-1 LED chips behind a protective clear (pc) cover for long-life and superior colour-mixing at the light source. Modules are moulded from high-temperature resisting ABS and are encapsulated to be fully dust and water resistant (IP67). Each module has a peel off, self-adhesive backing and screw fixing point for a fast and permanent installation.

One pack of consists of a chain of 20 modules

Specifications
ColourRed (625nm) Green (525nm) Blue (465nm)
Input Voltage12VDC (min 12 max 13)
Operating Current0.06A (Max.)
Operating Temp.-20 to 55ºC
Power Consumption0.72W (Max.)

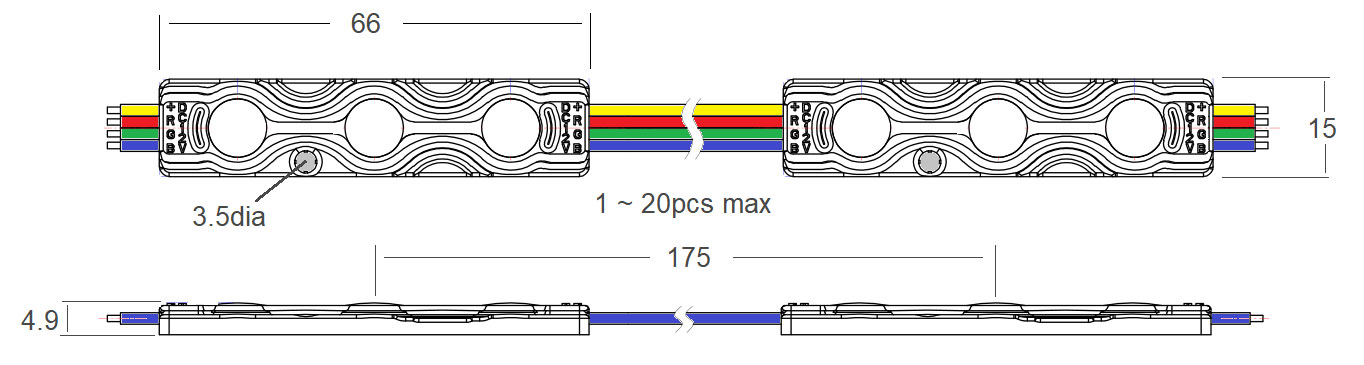

Dimensions66(L) x 15(W) x 4.9(H)
View Angle120°
Luminous Flux (Typ.)36lm // 50lm/W (Max.)
Colour Temperature (Typ.)NA
  • Beam angle 120°
  • Three 3-in-1 5050 SMD LEDs
  • High brightness and efficiency (36 lumens / white)
  • Low power consumption (0.72W)
  • Fast installation and low maintenance
  • Dust and water resistant (IP67)
  • Safe, low power operation (12VDC)
  • 5 years warranty or 35,000 hours to L/70 and B50 whichever occurs first *
