HLG-320H-12-B
MW range of 1-10V dimmable constant voltage power supply units for 12V LED modules
Download PDF brochure for this range
High-performance and fully featured weatherproof LED drivers designed for illuminated signage and other lighting applications.
Design is approved to EN61347-2-13: particular safety requirements for electronic control gear for LED modules.
For connection to the normal 230V a.c. ‘Mains’ supply, these drivers are suitable for 12V current limited LED modules including F-LED, H-LED, M-LED, FlexiLED, PinPoint and SE-LED. Dimming control is via a pair of wires (Blue+, White-) on the secondary side of the driver. Use a 1-10V dimmer switch to adjust brightness. Important: for reliable dimming function observe recommended max. and min. Wattage
| Rated power (W) / current (A) output | 264 / 22 | Recommended max and min-power (W) / current (A) output | Max. 224 / 18.7 Min. 132 / 11 |
| Input current typ. (A) @ 230V | 1.65 |
| Eff% | ≤91 |
| MTBF/K hours | 157 |

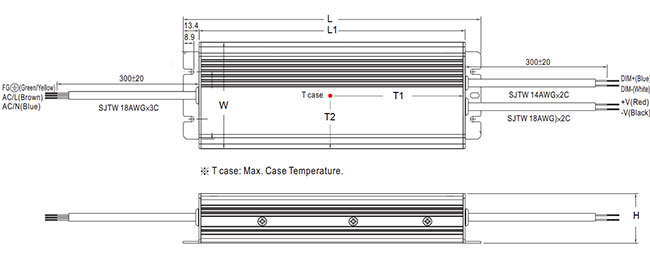

| Dimensions (mm) / Weight (kg) | L 252, L1 225 x W 90 x H 44 / 1.88 |
| Dimming? | Y |
