T3-CV CTRL

T3-CV CTRL

Ask us about T3-CV CTRL Call: 262-226-8620

Share:

Quick Overview

T3-CV controller can operate FlexiLED or module 12V chain up to 216W in a single-colour dimming, a two-colour temperature tuning or three-colour (RGB) colour change arrangement. Add as many controllers to a 103 WiFi hub network as required.

Download PDF data short form
Download PDF data full form

Control dimming, colour-temperature (CT) tuning and full RGB colour-change functions of a range of compatible LED arrays with a capacitive touch-wheel remote control or by using the free app on your iOS or Android smart phone / tablet in conjunction with a WiFi-103 hub.

Suitable for controlling a wide range of our LEDs for Signs products.

APPLICATIONS

Sign applications and designed interiors: sign box dimming, retail POS colour temperature tuning, corporate logo colour matching.

Specifications
Colour-
Input Voltage5 – 24V DC
Operating Current6A x 3CH 18A(Max
Operating Temp.- 20º~40º
Power Consumption-

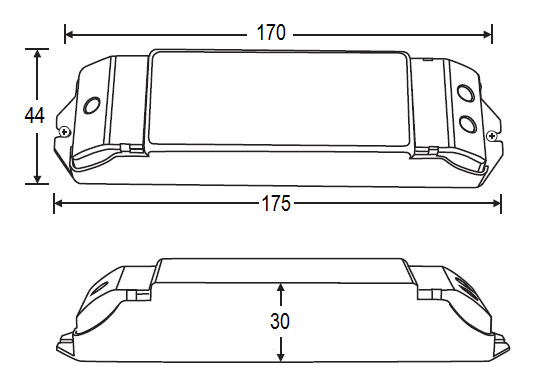

Dimensions175(L) x 44(W) x 30(H)
View AngleN/A
Luminous Flux (Typ.)
Colour Temperature (Typ.)
  • Advanced RF wireless sync control technology: no sync signal wires between components
  • 2.4GHz WiFi 802.11 b/g/n protocol connectivity
  • Choose to control either dimming, colour-temperature or full RGB from one hub
  • Choose from installed programmes or design, store and recall user programmes
  • Extendable: Add more T3-CC and / or T3-CV controllers as required
  • Use T1 (DIM), T2 (CT) or T3 (RGB) remote control or Android 2.1 or above, iOS 4.3 or above in conjunction with a WiFi-103 hub
  • Output Voltage: 5 – 24V DC
  • Power Output: 12V: 216W // 24V: 432W (Max)

+/- 5~10% tolerance on specifications.
