LED Driver Unit 100/12 SL

PSU100/12/IP20/SL

Ask us about LED Driver Unit 100/12 SL Call: 262-226-8620

Share:

Quick Overview

Indoor SL range of constant voltage power supply units for 12V LED modules.

Download Short Form PDF brochure

A high-performance and fully featured, indoor use LED driver designed for illuminated signage and other lighting applications. Design conforms with EN61347-2-13: particular safety requirements for electronic control gear for LED modules

Applications

Normal indoor use with: B-LED, FlexiLED (12V types), H-LED, M-LED, PinPoint, RGB-LED and SE-LED. Suitable for installing on or in furniture which is made from materials with unknown flammability properties.

Compliance

Meets the requirements for safety: EN61347-1 and 2-13 (with sign to IEC60-598): particular safety requirements for electronic control gear for LED modules. Type tested and monitored production by TUV

Specifications
V DC12
W100

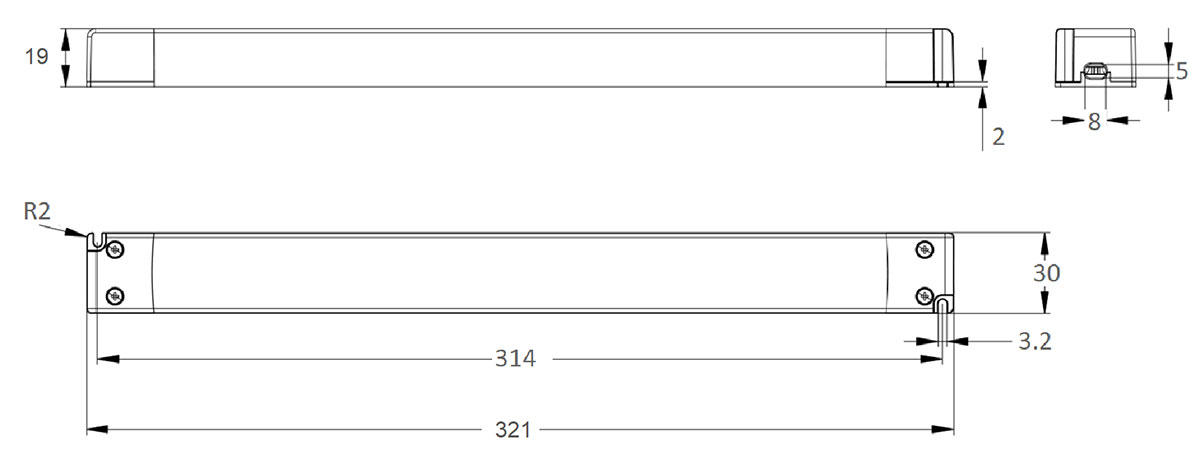

L x W x H321 x 30 x 19
IP20
Eff%≥90
SELV outputY
ClassII
Warranty3 yrs when operated within the parameters of specifications
  • EN61347-2-13 (with a sign to IEC60-598…): particular safety requirements for electronic control gear for LED modules
  • Recommended max power utilization: 85% / 85W / 7A
  • Slim, low-profile ideal for use with MOL inside shallow light boxes
  • Over-Current Protection
  • Short-Circuit Protection
  • Over-Voltage Protection
  • Over-Temperature Protection
  • Class II insulation: no earth connection is required
  • Normal, dry indoor use plastic case with screw terminals and screw down terminal covers (IP20)
  • 3 year warranty*
